OVERWHELMING 4K RESOLUTION
DEEPFLY DASH CAM DX11
4K UHD-FHD 2CH | 4K SONY STARVIS | ECO(Energy Saving) | REAL-HDR | 5GHz Wi-Fi | 165º Wide Viewing Angle | Built-in GPS
Time Lapse & Hyper Lapse | LBP | ADAS | Ultra Night-Vision | Mobile APP (Android/iOS) | Windows/Mac Viewer

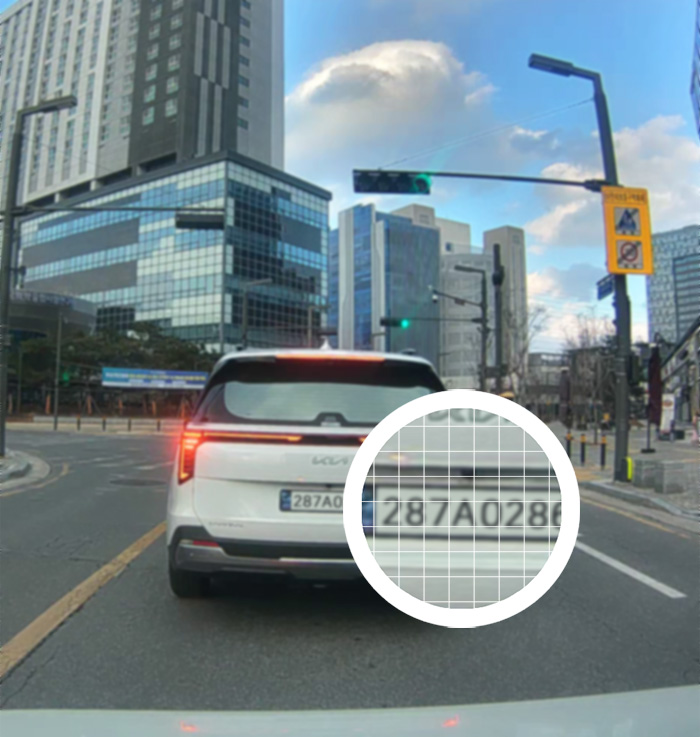

4K CRYSTAL CLEAR VIDEO
Clear recording of dynamic road conditions using UHD (3840x2160p) resolution.
With 4x more pixels than FHD and a wide viewing angle, you can now see every little detail on the road.
FHD (2M)
UHD CAPTURES EVERY MOMENT REALISTICALLY
SONY EXMOR R STARVIS 4K
PERFECT IMAGE PROCESSING EVEN IN LOW-LIGHT ENVIRONMENTS
The SONY Exmor R STARVIS 8M image sensor provides optimal image quality in the visible and near-infrared range
and improves low-light sensitivity to provide bright and clear 4K images even in dark environment

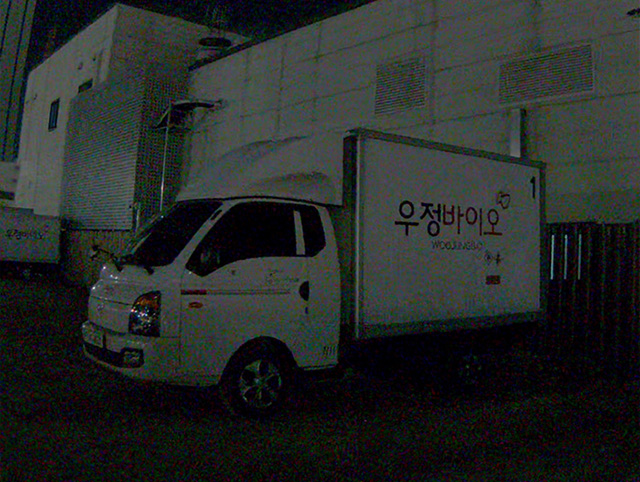

ULTRA NIGHT VISION
In dark environments such as unidentifiable alleys or parking lots, ULTRA NIGHT VISION
uses DEEPFLY’s unique image optimization processing technology to record clear,
eye-catching video in all situations. It provides optimal image quality in the visible and near-infrared ranges
and improves low-light sensitivity to provide clear and bright images even in dark environments.
THE VIDEO ENHANCEMENT TECHNOLOGY
HIGH DYNAMIC RANGE
CLEAR RECORDING QUALITY WHEN DRIVING AT NIGHT
DEEPFLY is equipped with the most advanced video enhancement technology to ensure the most vivid video recording in any situation.
Sudden changes in front light exposure levels, such as when driving in bright sunlight, exiting a tunnel, or entering a dark environment, may result in overly bright or dark recordings.
The HDR function removes excessive brightness from recordings and corrects color balance to produce sharp images.
HDR – ON
WIDE VIEWING ANGLE 165º
The 165-degree lens provides a wide viewing angle and minimizes blind spots,
ensuring that every scene is recorded perfectly.
Dewarp image processing
Dewarp image processing technology for a realistic screen.
By analyzing the script according to the characteristics of the lens with a wide angle of view,
we adjusted the image distortion of the front and rear lenses to reduce distortion as much as possible.
ECO MODE
ULTRA-LOW POWER PARKING RECORDING
When setting the eco mode in parking mode, it switches to standby mode in parking mode to minimize power consumption.
Eco mode: 12V conventional approx. 0.36W (conventional 4.5W), 875% reduction compared to conventional power consumption)
The eco mode Impact detection system, which is tuned to be 4 times more sensitive than conventional impact detection sensors, starts recording immediately when a light shock is detected during standby mode, which allows you to extend the dash cam usage time to the maximum with 875% less power consumption compared to conventional power consumption.
INTELLIGENT ULTRA-LOW POWER
HIGHT TEMPERATURE CUTOFF SYSTEM
With the smart parking recording function applied with DEEPFLY’s proprietary ITR technology, it automatically switches to ultra-power standby mode in high-temperature situations where the black box is shut down, recording only when an impact occurs.
This manages the temperature of the device and minimizes the AP temperature rise. When the temperature stabilizes, the system automatically changes to the previously set parking mode.
ULTRA-FAST 5GHz Wi-Fi
The upgraded 5GHz Wi-Fi network guarantees data transmission speeds 4 times faster than the existing 2.4GHz.
It provides smooth video playback and downloads through fast speeds.
2.4GHz Wi-Fi
5.0GHz Wi-Fi
EASY WI-FI DEVICE PAIRING WITH
DEEPFLY CONNECTED APP
The free DEEPFLY DASHCAM dedicated APP can play, download, and save videos stored in the DASHCAM directly to your phone, and upload them directly to social media. You can check real-time videos, automatically update firmware, control settings on the DASHCAM, and perform various other functions through the app.
When you need
it urgently, a more reliable
USB-C smartphone connection
DX11 can connect smart devices with a wire using a USB-C type cable. You can check and download recorded videos twice as fast as wireless (Wi-Fi) connection, and update device settings and firmware.
*Real-time video is not supported when connected via cable.
*Cables are sold separately, and we recommend using genuine cables from smartphone manufacturers
DOWNLOAD – DEEPFLY DASH CAM MOBILE APP
DEEPFLY CONNECTED APP
4X MORE RECORDING TIME
TIME-LAPSE
Long Parking Recording With
In parking mode, it records video at 1 frame, allowing continuous recording of parking surveillance for long periods of time without increasing power consumption.
When an impact is detected, the recording frame rate automatically switches to 30 frames, providing clearer video of important moments.
HYPER-LAPSE
Long Drive Recording With
Don’t worry about your long-time recordings being overwritten. Hyperlapse records video at 1 frame per second in driving recording mode, saving over 4x more time and footage than normal driving mode.
If an impact occurs, the recording frame rate automatically switches to 30 frames per second, providing even clearer footage of the crucial moment.
VARIOUS AUTONOMOUS
RECORDING MODES
STORAGE TIME BY MEMORY CARD
RESOLUTION – Front:2160p UHD / Rear:1080p FHD
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEM
equipped with the Road Safety Warning System that provides audio and visual alerts for Lane Departure (LDWS), Front Collision (FCWS) and Front Vehicle Departure (FVDW). It detects road markings and gives voice warnings to the drivers if the vehicle begins to stray from its lane or when it is at risk of an imminent crash.
LDWS
LANE DEPARTURE WARNING SYSTEM
If the driver falls asleep while driving or drives poorly, causing the car to depart the lane, it will notify about it through the preset warning sound.
FVDW
FRONT VEHICLE DEPARTURE WARNING
Informs the driver when the vehicle in front has started to move, preventing delayed departure.
FCWS
FORWARD COLLISION WARNING SYSTEM
The vehicle in front and alerts the driver in advance when reaching the range of safe breaking distance in order to prevent a collision.
BUILT-IN GPS
COMPREHENSIVE DRIVING DATA THROUGH
The GPS data in the DEEPFLY DX series can precisely pinpoint the vehicle’s location and routes on the map, while also displaying the driving speed. This helps to more accurately assess the situation and the circumstances in case of an accident.
FORMAT FREE 2.0
HIGH-EFFICIENCY VIDEO CODING FORMAT
One of the recorded image on the SD card is not stored across into many pieces, due to sudden power loss, if the images are not perfectly finished recording, and the file can be played. The product consists of a stable system, users do not need to format the SD card regularly.
Cable Cover Mounts – Optional
The cable cover mount helps organize power cables, rear cables, and others neatly without exposing them to the outside.
It is a new accessory option that adds a touch of sophistication to high-end DX11 systems.
CAMERA OPTIONS
PRODUCT SPECIFICATIONS
FRONT CAMERA
REAR CAMERA
GENERAL SPECIFICATIONS
Dimensions
Front camera : 87.9 x 90.2 x 33.5 mm / Rear camera : 51.4 x 45.2 x 32 mm
Weight
Front camera : 101.9g / Rear camera : 26.5g
Package
Front camera(Mount) / Rear camera / Microsd card / Wi-Fi USB dongle(5GHz) / Rear camera cable / Hardwiring cable / Quick guide / Electrostatic sticker
DETAILED SPECIFICATIONS
Camera
Front: 8M Pixels SONY STARVIS(4K) Sensor / Rear: 2M Pixels SONY STARVIS(FHD) Sensor
Resolution
Front: 4K UHD (3840x2160p) @ 30fps, Rear: Full HD (1920 x 1080p) @ 30fps
Capacity
Micro SD Card 32GB~512GB
Recording Modes
Continuous Recording / Event Recording / Manual Recording / Parking Recording / Audio Recording
ECO Mode : Starts recording immediately when a light shock is detected during standby mode
Hyper-Lapse(Driving Mode)/Time-Lapse(Parking Mode) : 1fps
Angle
Front: Diagonal 165°, Horizontal 139°, Vertical 91°
Rear: Diagonal 142°, Horizontal 115°, Vertical 62°
Sensor
3-Axis Accelerometer G-Sensor (3D, ±3G)
Audio
PCM(Pulse Code Modulation)
GPS
Bulit-in GPS
ADAS
LDWS / FVDW / FCWS
Wi-Fi
External WiFi Dobgle (5.0GHz)
Temperature
Operation temp : -20℃ – 70℃ (-4°F – 158°F)
High temp cut off: Approx. 70℃ (158°F)
Power
Input Power : DC 12/24V
PC Viewer
Windows 7 or higher and Mac (OS X 10.7 64Bit) or higher
Application
Android 6.0, IOS 10.0 or higher : Firmware update supported
Certifications
KC, FCC, CE, RoHS, IC
OVERWHELMING
4K RESOLUTION
DEEPFLY DASH CAM DX11
4K UHD-FHD 2CH | 4K SONY STARVIS | ECO(Energy Saving)
REAL-HDR | 5GHz Wi-Fi | 165º Wide Viewing Angle
Built-in GPS | Time Lapse & Hyper Lapse | LBP | ADAS
Ultra Night-Vision | Mobile APP (Android/iOS) | Windows/Mac Viewer
4K CRYSTAL
CLEAR VIDEO
Clear recording of dynamic road conditions using UHD (3840x2160p) resolution.
With 4x more pixels than FHD and a wide viewing angle, you can now see every little detail on the road.
4K UHD (8M)
UHD CAPTURES EVERY MOMENT REALISTICALLY
SONY EXMOR R
STARVIS 4K
PERFECT IMAGE PROCESSING EVEN IN LOW-LIGHT ENVIRONMENTS
The SONY Exmor R STARVIS 8M image sensor provides optimal image quality in the visible and near-infrared range
and improves low-light sensitivity to provide bright and clear 4K images even in dark environment
ULTRA
NIGHT VISION
In dark environments such as unidentifiable alleys or parking lots, ULTRA NIGHT VISION
uses DEEPFLY’s unique image optimization processing technology to record clear, eye-catching video in all situations. It provides optimal image quality in the visible and near-infrared ranges and improves low-light sensitivity to provide clear and bright images even in dark environments.
Night Vision – Off
Ultra Night Vision
HIGH DYNAMIC
RANGE
CLEAR RECORDING QUALITY WHEN DRIVING AT NIGHT
DEEPFLY is equipped with the most advanced video enhancement technology to ensure the most vivid video recording in any situation.
Sudden changes in front light exposure levels, such as when driving in bright sunlight, exiting a tunnel, or entering a dark environment, may result in overly bright or dark recordings.
The HDR function removes excessive brightness from recordings and corrects color balance to produce sharp images.
HDR – OFF
HDR – ON
WIDE VIEWING
ANGLE 165º
The 165-degree lens provides a wide viewing angle and minimizes blind spots, ensuring that every scene is recorded perfectly.
Dewarp image processing
Dewarp image processing technology for a realistic screen. By analyzing the script according to the characteristics of the lens with a wide angle of view, we adjusted the image distortion of the front and rear lenses to reduce distortion as much as possible.
Dewarp Technology Not Applied
ECO MODE
ULTRA-LOW POWER PARKING RECORDING
When setting the eco mode in parking mode, it switches to standby mode in parking mode to minimize power consumption.
Eco mode: 12V conventional approx. 0.36W (conventional 4.5W), 875% reduction compared to conventional power consumption)
The eco mode Impact detection system, which is tuned to be 4 times more sensitive than conventional impact detection sensors, starts recording immediately when a light shock is detected during standby mode, which allows you to extend the dash cam usage time to the maximum with 875% less power consumption compared to conventional power consumption.
INTELLIGENT
ULTRA-LOW POWER
HIGHT TEMPERATURE CUTOFF SYSTEM
With the smart parking recording function applied with DEEPFLY’s proprietary ITR technology, it automatically switches to ultra-power standby mode in high-temperature situations where the black box is shut down, recording only when an impact occurs.
This manages the temperature of the device and minimizes the AP temperature rise. When the temperature stabilizes, the system automatically changes to the previously set parking mode./p>
ULTRA-FAST
5GHz Wi-Fi
The upgraded 5GHz Wi-Fi network guarantees data transmission speeds 4 times faster than the existing 2.4GHz.
It provides smooth video playback and downloads through fast speeds.
2.4GHz Wi-Fi
5.0GHz Wi-Fi
EASY WI-FI DEVICE PAIRING WITHe
DEEPFLY
CONNECTED APP
The upgraded 5GHz Wi-Fi network guarantees data transmission speeds 4 times faster than the existing 2.4GHz.
It provides smooth video playback and downloads through fast speeds.
When you need
it urgently, a more reliable
USB-C smartphone
connection
DX11 can connect smart devices with a wire using a USB-C type cable. You can check and download recorded videos twice as fast as wireless (Wi-Fi) connection, and update device settings and firmware.
*Real-time video is not supported when connected via cable.
*Cables are sold separately, and we recommend using genuine cables from smartphone manufacturers
DOWNLOAD
DEEPFLY CONNECTED APP
4X MORE
RECORDING TIME
DX11 can connect smart devices with a wire using a USB-C type cable. You can check and download recorded videos twice as fast as wireless (Wi-Fi) connection, and update device settings and firmware.
*Real-time video is not supported when connected via cable.
*Cables are sold separately, and we recommend using genuine cables from smartphone manufacturers
VARIOUS
AUTONOMOUS
RECORDING MODES
STORAGE TIME BY
MEMORY CARD
RESOLUTION
Front:2160p UHD / Rear:1080p FHD
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEM
equipped with the Road Safety Warning System that provides audio and visual alerts for Lane Departure (LDWS), Front Collision (FCWS) and Front Vehicle Departure (FVDW). It detects road markings and gives voice warnings to the drivers if the vehicle begins to stray from its lane or when it is at risk of an imminent crash.
BUILT-IN GPS
FORMAT FREE 2.0
Cable Cover Mounts
Optional
The cable cover mount helps organize power cables, rear cables, and others neatly without exposing them to the outside.
It is a new accessory option that adds a touch of sophistication to high-end DX11 systems.
PRODUCT SPECIFICATIONS
FRONT CAMERA
REAR CAMERA
GENERAL SPECIFICATIONS
Dimensions
Front camera : 87.9 x 90.2 x 33.5 mm / Rear camera : 51.4 x 45.2 x 32 mm
Weight
Front camera : 101.9g / Rear camera : 26.5g
Package
Front camera(Mount) / Rear camera / Microsd card / Wi-Fi USB dongle(5GHz) / Rear camera cable / Hardwiring cable / Quick guide / Electrostatic sticker
DETAILED SPECIFICATIONS
Camera
Front: 8M Pixels SONY STARVIS(I4K) Sensor / Rear: 2M Pixels SONY STARVIS(FHD) Sensor
Resolution
Front: 4K UHD (3840x2160p) @ 30fps, Rear: Full HD (1920 x 1080p) @ 30fps
Capacity
Micro SD Card 32GB~512GB
Recording Modes
Continuous Recording / Event Recording / Manual Recording / Parking Recording / Audio Recording
ECO Mode : Starts recording immediately when a light shock is detected during standby mode
Hyper-Lapse(Driving Mode)/Time-Lapse(Parking Mode) : 1fps
Angle
Front: Diagonal 165°, Horizontal 139°, Vertical 91°
Rear: Diagonal 142°, Horizontal 115°, Vertical 62°
Sensor
3-Axis Accelerometer G-Sensor (3D, ±3G)
Audio
PCM(Pulse Code Modulation)
GPS
Bulit-in GPS
ADAS
LDWS / FVDW / FCWS
Wi-Fi
External WiFi Dobgle (5.0GHz)
Temperature
Operation temp : -20℃ – 70℃ (-4°F – 158°F)
High temp cut off: Approx. 70℃ (158°F)
Power
Input Power : DC 12/24V
PC Viewer
Windows 7 or higher and Mac (OS X 10.7 64Bit) or higher
Application
Android 6.0, IOS 10.0 or higher : Firmware update supported
Certifications
KC, FCC, CE, RoHS, IC
